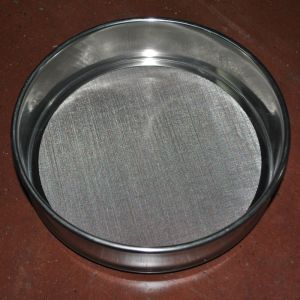

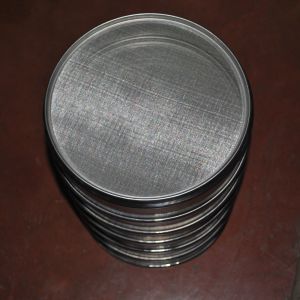

10 30 50 60 80 Micron Stainless Steel Fine Mesh Laboratory Test
Sieve
1. Stainless Steel Fine Mesh Test Sieve Description
Stainless steel flour screen is mainly composed of external frame
and stainless steel filter screen
Flour screen is a specially designed screening equipment for potato
starch, corn starch , wheat starch , cellulose , soybean , peanut
protein , flour , cassava starch and other starch materials and
derivatives of starch materials
2. Stainless Steel Fine Mesh Test Sieve Features
Any particle , powder and mucus can be screened within a certain
range
Screening and filtering can be as small as 5 microns , with high
filtering efficiency , exquisite and durable design , easy screen
changing , simple operation , convenient cleaning and long service
life
3. Stainless Steel Fine Mesh Test Sieve Specification
| Mesh | Wire Dia(mm) | Opening(mm) | Material(AISI) |
| 2mesh*2mesh | 1.8 | 10.9 | 304 or 316 |
| 3mesh*3mesh | 1.5 | 6.96 | 304 or 316 |
| 4mesh*4mesh | 1 | 5.35 | 304 or 316 |
| 7mesh*7mesh | 1 | 2.63 | 304 or 316 |
| 10mesh*10mesh | 0.6 | 1.94 | 304 or 316 |
| 12mesh*12mesh | 0.5 | 1.62 | 304 or 316 |
| 16mesh*16mesh | 0.4 | 1.19 | 304 or 316 |
| 16mesh*16mesh | 0.35 | 1.24 | 304 or 316 |
| 18mesh*18mesh | 0.35 | 1.06 | 304 or 316 |
| 20mesh*20mesh | 0.4 | 0.87 | 304 or 316 |
| 24mesh*24mesh | 0.26 | 0.8 | 304 or 316 |
| 30mesh*30mesh | 0.3 | 0.55 | 304 or 316 |
| 35mesh*35mesh | 0.17 | 0.56 | 304 or 316 |
| 40mesh*40mesh | 0.23 | 0.4 | 304 or 316 |
| 50mesh*50mesh | 0.2 | 0.31 | 304 or 316 |
| 60mesh*60mesh | 0.15 | 0.27 | 304 or 316 |
| 70mesh*70mesh | 0.12 | 0.24 | 304 or 316 |
| 80mesh*80mesh | 0.13 | 0.19 | 304 or 316 |
| 90mesh*90mesh | 0.1 | 0.16 | 304 or 316 |
| 100mesh*100mesh | 0.09 | 0.15 | 304 or 316 |
| 120mesh*120mesh | 0.063 | 0.12 | 304 or 316 |
| 150mesh*150mesh | 0.053 | 0.11 | 304 or 316 |
| 180mesh*180mesh | 0.053 | 0.09 | 304 or 316 |
| 200mesh*200mesh | 0.04 | 0.07 | 304 or 316 |
| 250mesh*250mesh | 0.04 | 0.063 | 316 |
| 300mesh*300mesh | 0.04 | 0.044 | 316 |
| 325mesh*325mesh | 0.035 | 0.043 | 316L |
| 350mesh*350mesh | 0.03 | 0.042 | 316L |
| 400mesh*400mesh | 0.03 | 0.33 | 316L |
| 450mesh*450mesh | 0.028 | 0.028 | 316L |
| 500mesh*500mesh | 0.025 | 0.026 | 316L
|
4. Stainless Steel Fine Mesh Test Sieve Application
Chemical industry resins , coatings , industrial drugs , cosmetics
, paints , Chinese medicine powder , etc
Food industry powdered sugar , starch , salt , rice flour , milk
powder , soy milk , egg powder , soy sauce , juice , etc
Metal, metallurgical mining aluminum powder , lead powder , copper
powder , ore , alloy powder , electrode powder , manganese dioxide
, electrolytic copper powder , electromagnetic material , abrasive
powder , refractory material , kaolin , lime , alumina , heavy
carbonic acid Calcium , quartz sand , etc
Other industries waste oil , wastewater , dyeing and finishing
wastewater , paper making , additives , activated carbon , etc
